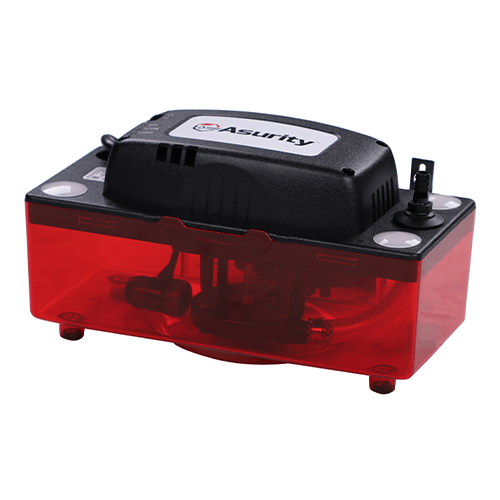

Suitable for use with condensate from HVAC/R applications. 22ft of lift compared to the typical 20ft. Features include vibration dampening feet and motor mounts, metal hang tabs, four inlet holes, a clear indicator display, a float switch and check valve. Integrating the CP-22 into your system is easy. 1/4in. quick connect terminals provide easy connection to the built in overflow switch. Two Safety Switch terminals are provided to provide system shut-down as needed. The new CP-22LP comes packed with all the same great features found in the CP-22, but now in a low profile package. This pump is only 4 3/8in. tall so it’s a good fit for those instances where space is at a premium. The shorter reservoir holds 1/3 gallon. Suitable for use with condensate up to 160 degree F.
| Item Number | Item Description | Primary UOM | Order Multiple |
|---|---|---|---|
| CP-22 | CP Series 120V Condendate Pump | EA | 6 |
| CP-22-230 | CP Series 230V Condensate Pump | EA | 6 |
| CP-22T | CP Series 120V Condendate Pump with Tubing | EA | 6 |
| CP-22-230T | CP Series 230V Condensate Pump with Tubing | EA | 6 |
| Item Number | Item Description | Primary UOM | Order Multiple |
|---|---|---|---|
| CP-22 | CP Series 120V Condendate Pump | EA | 6 |
| CP-22-230 | CP Series 230V Condensate Pump | EA | 6 |
| CP-22T | CP Series 120V Condendate Pump with Tubing | EA | 6 |
| CP-22-230T | CP Series 230V Condensate Pump with Tubing | EA | 6 |
The new CP-22LP comes packed with all the same great features found in the CP-22, but now in a low profile package. This pump is only 4 3/8in. tall so it’s a good fit for those instances where space is at a premium. The shorter reservoir holds 1/3 gallon. Suitable for use with condensate up to 160 degree F. UL Listed File Numbers E253155 and E258186.
| Item Number | Item Description | Primary UOM | Order Multiple |
|---|---|---|---|
| CP-22LP | CP Series 120V Low Profile Condendate Pump | EA | 6 |
| CP-22LP-230 | CP Series 230V Low Profile Condensate Pump | EA | 6 |
| CP-22LP-230-P | CP Series 230V Low Profile, Plenum Rated Condensate Pump | EA | 6 |
| CP-22LP-P | CP Series 120V Low Profile, Plenum Rated Condensate Pump | EA | 6 |
| Item Number | Item Description | Primary UOM | Order Multiple |
|---|---|---|---|
| CP-22LP | CP Series 120V Low Profile Condendate Pump | EA | 6 |
| CP-22LP-230 | CP Series 230V Low Profile Condensate Pump | EA | 6 |
| CP-22LP-230-P | CP Series 230V Low Profile, Plenum Rated Condensate Pump | EA | 6 |
| CP-22LP-P | CP Series 120V Low Profile, Plenum Rated Condensate Pump | EA | 6 |
The DiversiTech CP-16 condensate pump is an economical alternative that’s based off of the proven CP-22 design. More compact than the CP-22, it’s designed to lift to a maximum of 16 feet. The CP-16 shares many of the great features of the CP-22, including hang tabs, four inlet holes, float switch, overflow switch, and a check valve. UL Listed File Numbers E253155 and E258186.
| Item Number | Item Description | Primary UOM | Order Multiple |
|---|---|---|---|
| CP-16 | CP-16 Condensate Pump, 16ft. lift, 120V | EA | 6 |
| Item Number | Item Description | Primary UOM | Order Multiple |
|---|---|---|---|
| CP-16 | CP-16 Condensate Pump, 16ft. lift, 120V | EA | 6 |
No Float, No Problems! ClearVue’s iQ Technology™ and Floatless Sensor™ make this the most advanced condensate pump ever. This new pump can provide up to 22ft of lift if needed. ClearVue™ runs at the minimum speed needed, saving wear on the pump. The pump selects the lowest effective speed, making it quieter than a regular pump. Its unique self-cleaning feature senses problems and automatically enters a self-cleaning mode using condensate water to fix the issue. The ClearVue™ pump features a clear bottom tank to easily check the water level.
Other features include: stainless steel mounting tabs, silicone rubber feet, reversible deck, four inlet holes, and LED indicator lights. ETL Listed File Number 3190890
| Item Number | Item Description | Primary UOM | Order Multiple |
|---|---|---|---|
| IQP-120 | IQP Series 120V Condensate Pump | EA | 6 |
| IQP-120T | IQP Series 120V Condensate Pump with Tubing | EA | 6 |
| Item Number | Item Description | Primary UOM | Order Multiple |
|---|---|---|---|
| IQP-120 | IQP Series 120V Condensate Pump | EA | 6 |
| IQP-120T | IQP Series 120V Condensate Pump with Tubing | EA | 6 |
The FP-22 Furnace Pump is a full featured condensate pump designed for furnaces and other hot water applications. It handles hot condensate water up to 190 degrees F. Other features include 22' lift, built-in P traps, steam resistant electronics, and a super tough tank. Available in 120 and 230V models.
| Item Number | Item Description | Primary UOM | Order Multiple |
|---|---|---|---|
| FP-22 | FP-22 Condensate Pump, 22ft. lift, 120V | EA | 6 |
| FP-22-230 | FP-22 Condensate Pump, 22ft. lift, 230V | EA | 6 |
| Item Number | Item Description | Primary UOM | Order Multiple |
|---|---|---|---|
| FP-22 | FP-22 Condensate Pump, 22ft. lift, 120V | EA | 6 |
| FP-22-230 | FP-22 Condensate Pump, 22ft. lift, 230V | EA | 6 |
The BP-46 Boiler Pump is a heavy duty, full featured condensate pump for hot water applications up to 211 degrees F. It features a 46' lift, oil resistant tank and impeller, two inlet holes and 1/4 turn check valve. Additional features include high impact construction and large tank. Available in 120 and 230V models.
| Item Number | Item Description | Primary UOM | Order Multiple |
|---|---|---|---|
| BP-46 | BP-46 High Temperature Boiler Condensate Removal Pump, 46ft. lift, 115V | EA | 1 |
| BP-46-230 | BP-46 High Temperature Boiler Condensate Removal Pump, 46ft. lift, 230V | EA | 1 |
| Item Number | Item Description | Primary UOM | Order Multiple |
|---|---|---|---|
| BP-46 | BP-46 High Temperature Boiler Condensate Removal Pump, 46ft. lift, 115V | EA | 1 |
| BP-46-230 | BP-46 High Temperature Boiler Condensate Removal Pump, 46ft. lift, 230V | EA | 1 |
Featuring super quiet operation, specifically designed for ductless system installations, and including iQ Technology™ and Floatless Sensor™, ClearVue™ Mini is chock full of innovative features, and priced competitively.
| Item Number | Item Description | Primary UOM | Order Multiple |
|---|---|---|---|
| CVMINI | Mini-Split Condensate Pump | EA | 6 |
| Item Number | Item Description | Primary UOM | Order Multiple |
|---|---|---|---|
| CVMINI | Mini-Split Condensate Pump | EA | 6 |

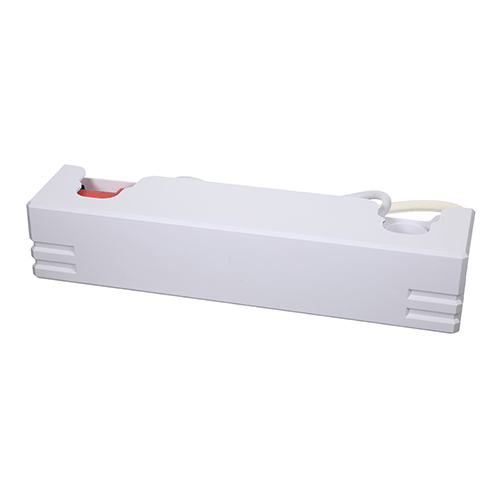

DiversiTech's Mini Split Condensate Pump is a quiet, super compact, and feature rich pump that fits almost anywhere. Available in 115V and 230V versions. Pump fits easily in most line sets covers.
| Item Number | Item Description | Primary UOM | Order Multiple |
|---|---|---|---|
| CP-M230 | Mini-Split condensate pump, 230V | EA | 10 |
| CP-M115 | Mini-Split condensate pump, 115V | EA | 10 |
| Item Number | Item Description | Primary UOM | Order Multiple |
|---|---|---|---|
| CP-M230 | Mini-Split condensate pump, 230V | EA | 10 |
| CP-M115 | Mini-Split condensate pump, 115V | EA | 10 |
Check valve installs easily and prevents water from travelling backwards into the pump and overflowing.
| Item Number | Item Description | Primary UOM | Order Multiple |
|---|---|---|---|
| CP-CV | Replacement Check Valve for Condensate Pumps | EA | 1 |
| Item Number | Item Description | Primary UOM | Order Multiple |
|---|---|---|---|
| CP-CV | Replacement Check Valve for Condensate Pumps | EA | 1 |
